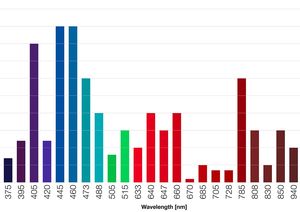

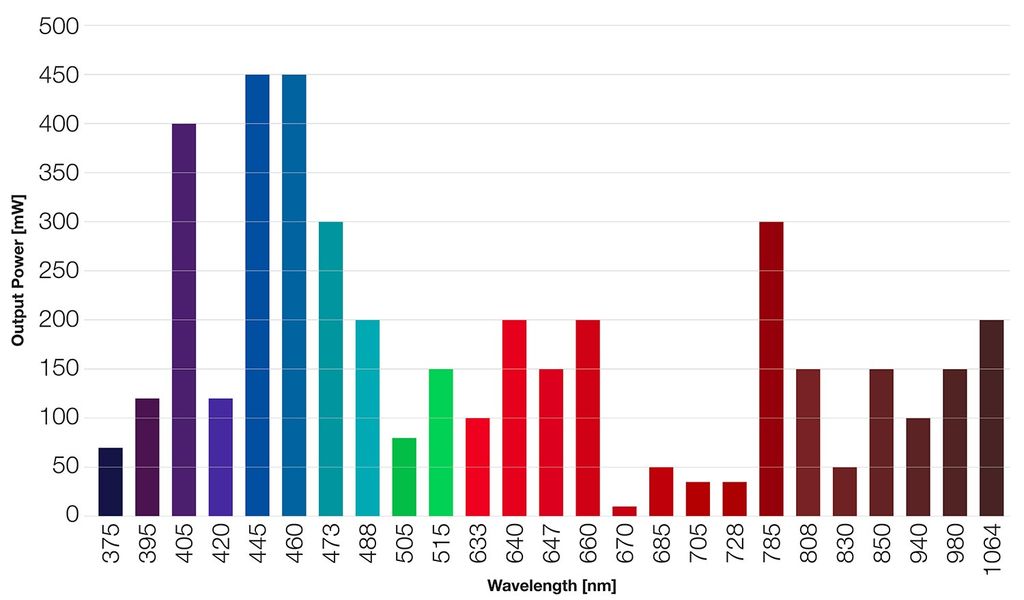

iBeam smart standard wavelengths with highest optical power
iBeam smart
High-Performance Single Mode Diode Laser

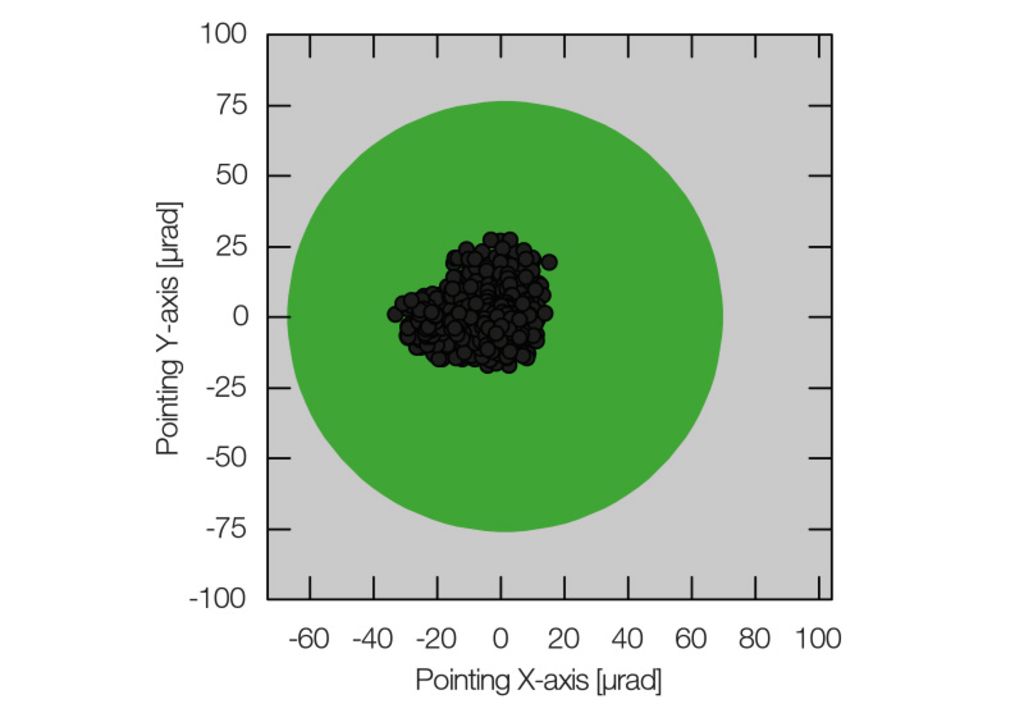

The iBeam smart is the ultimate choice when looking for a high-performance, ultra-reliable OEM single mode diode laser system. Record values at output power, combined with excellent power and beam pointing stability are setting the standard in the class of compact diode lasers. Its flexible, µ-processor based electronics will make system integration a snap. Features as FINE, SKILL and AUTOPULSE are capable to solve common problems of your application.
-
Click on the wavelength to request a quote ...

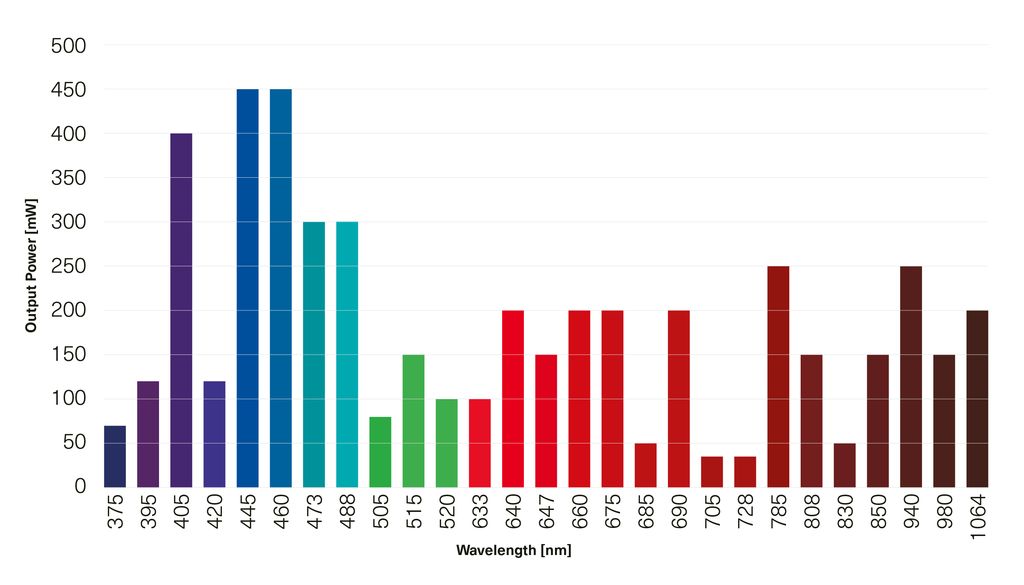

Wavelength Output Power 375 nm 70 mW 395 nm 120 mW 405 nm 100/150/300/400 mW 420 nm 120 mW 445 nm 100/450 mW 460 nm 100/450 mW 473 nm 100/300 mW 488 nm 100/200/300 mW 505 nm 80 mW 515 nm 100/150 mW 633 nm 100 mW 640 nm 150/200 mW 647 nm 150 mW Wavelength Output Power 660 nm 130/200 mW 675 nm 200 mW 685 nm 50 mW 690 nm 200 mW 705 nm 35 mW 728 nm 35 mW 785 nm 125/250 mW 808 nm 150 mW 830 nm 50 mW 850 nm 150 mW 940 nm 300 mW 980 nm 150 mW 1064 nm 200 mW -
Additional Information
-
Options
Standard Features:
- FINE – Feedback Induced Noise Eraser:
Purely electronic feature, making the iBeam smart insensitive to optical feedback (no isolator, noise eater etc.) - SKILL – SpeckleKILLer:
Reducing speckles by decreasing the longitudinal coherence lengths of emitted light to a minimum
Optional:- Pulse-option (including AUTOPULSE feature):

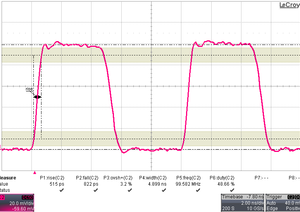

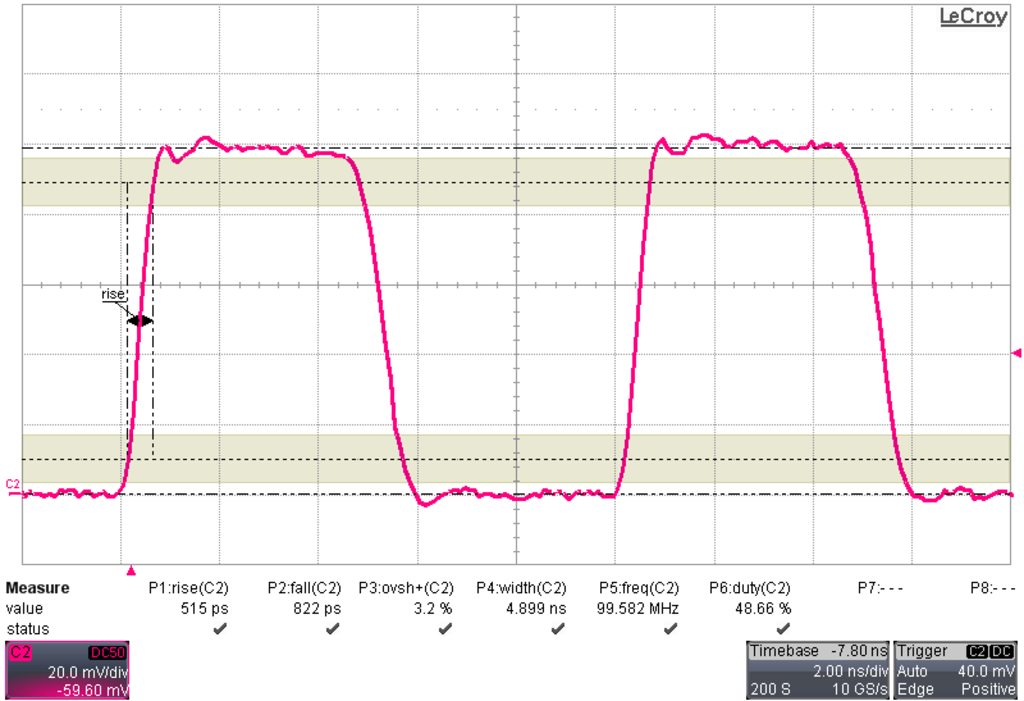

- Ultra-fast asynchronous digital modulation with up to 250 MHz
- Rise and fall times < 1.5 ns
- ON/OFF extinction (depending on wavelength) typical > 1000 : 1
- Multi-level input with adjustable trigger levels
- AUTOPULSE: With the AUTOPULSE feature one can use the internal capabilities of the intelligent iBeam smart electronics. Frequencies up to 10 MHz can be programmed, the duty cycle can be set in the range from 1 to 99 % (depending on the frequency)
- Wavelength selection: Whenever a process shows extreme spectral dependence, the iBeam can be ordered with a tighter wavelength tolerance (e.g. 407 ± 1 nm). Thus you can be sure to get the ideal laser emission for your process.
- Clean up filter:
Model Center Wavelength Bandwidth Transmission Blocking CLUP-405 405 nm 10 nm > 90% over 10 nm OD > 3: 358 - 389 nm & 420 - 466 nm
OD > 5: 361 - 384 nm & 428 - 457 nmCLUP-488 488 nm 6 nm > 90% over 10 nm OD > 3: 350 - 477 nm & 499 - 800 nm
OD > 5: 370 - 474 nm & 503 - 572 nmCLUP-640 640 nm 8 nm > 90% over 8 nm OD > 3: 400 - 625 nm & 655 - 720 nm
OD > 5: 580 - 622 nm & 658 - 717 nm
- SmartDock - Fiber coupling: Especially designed for the iBeam smart TOPTICA's SmartDock turns the iBeam smart into a rugged fiber coupled diode laser system. Both single-mode and polarization-maintaining fibers can be connected to the SmartDock. Better than 60 % coupling efficiency is guaranteed, 75% are typical values, but efficiencies up to 90 % have been demonstrated due to the high beam quality of the iBeam smart.
- Highest single-mode coupling efficiency
- Exceptional stability, even under varying ambient conditions
- Patented flexure hinge design (US 7,321,706, EP 1,666,944).
- Simple, straight-forward alignment
- Compatible to all iBeam smart lasers
Fiber Type - Single-mode (SM)
- Single-mode polarization maintaining (SM/PM)
- Multi-mode
Connector Type FC/APC Wavelength Range 375 nm to 1100 nm Size 31 x 31 x 41.5 mm³ (H x W x D) Coupling Efficiency > 60 % guaranteed (75 % typical)

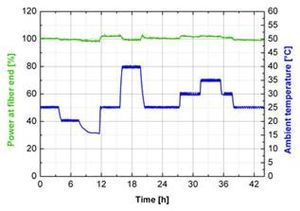

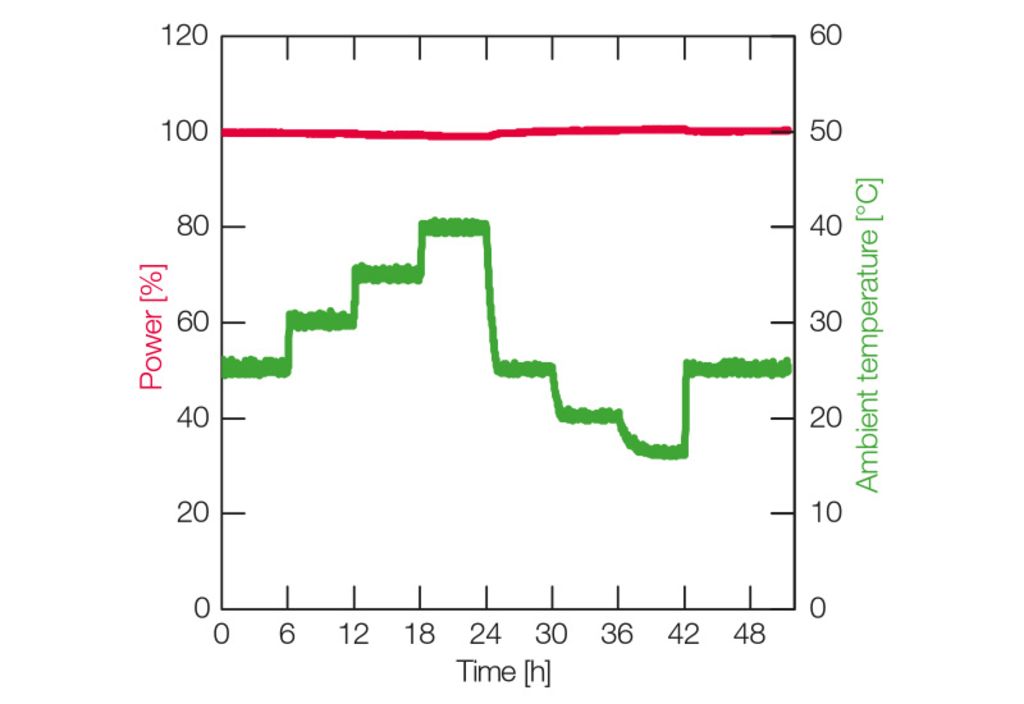

Fiber coupled iBeam smart: Typical power stability under changing ambient temperature
- FINE – Feedback Induced Noise Eraser:
-
Applications
- Confocal microscopy
- Disc mastering
- Flow cytometry
- Laser scanning cytometry
- Microlithography
- Metrology
- Ellipsometry
- Reprographics / CtP printing
-
Downloads
- Product Brochure: iBeam smart Family
- Software: TOPAS iBeam smart GUI
- Technical Drawings: iBeam smart
- Technical Drawings: iBeam smart with SmartDock
-
Literature
- Article: Joaquim Santos, et al., Confocal LiDAR for remote high-resolution imaging of auto-fluorescence in aquatic media, Nature, Scientific Reports volume 13, Article number: 4807 (2023)
- Article: 3D direct laser writing using a 405 nm diode laser (Optics Letters)
- Article: Lasers for Confocal Microscopy (Imaging & Microcopy)
- Article: Klaviatur der Farben (LASER)
- Press release: TOPTICA presents 515 nm direct diode technology live at Photonics West
- Press release: iBeam smart - Fully Featured
- Press release: iBeam smart - The Ultra-Compact Diode Laser
