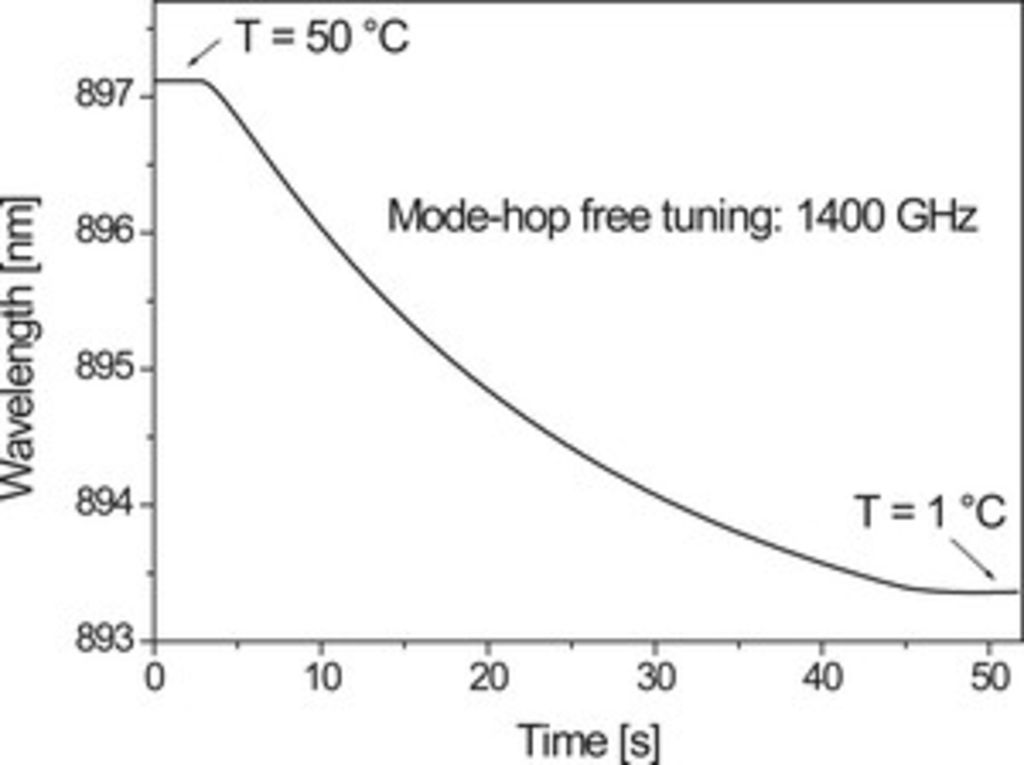

Thermal frequency tuning of an 895 nm DFB diode.
DFB – Distributed Feedback Diodes
- Turnkey single-frequency operation (built-in grating)
- Wavelengths from 633 .. 3500 nm available
- Frequency tuning via temperature and current
- Mode-hop-free scans up to 1400 GHz
- Diodes sold separately and in DFB pro systems
Distributed feedback (DFB) laser diodes feature a grating structure within the semiconductor and thus operate in both longitudinal and transverse single mode. Tuning is achieved by modulating either the laser current or the chip temperature. Mode-hop free tuning is maintained over several hundred GHz. Applications include alkaline spectroscopy, laser cooling, gas detection and the generation of tunable cw terahertz radiation.
DFB/DBR laser diodes may be integrated into a DFB pro.
-
Specification
Center wavelengths 640 .. 685 nm1, 760 .. 2880 nm Typical output power 2 .. 150 mW Typical coarse tuning 2 .. 6 nm Thermal tuning
Typical range
Typical Speed
Typical rate
> 1000 GHz
50 GHz/s
-25 GHz/K (@800 nm), -10 GHz/K (@ 1500 nm)Electric tuning
Typical range
Typical speed
Typical rate
~ 50 GHz
10 kHz²

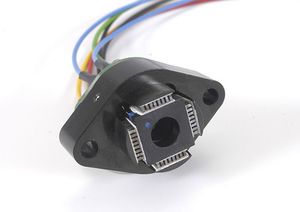

1 .. 10 GHz / mATypical instantaneous linewidth < 500 kHz Typical output beam characteristics 3 mm x 1 mm Typical output beam polarization Linear > 100:1 Thermal stabilization ColdPack, TO-3 or butterfly package 1Spectral coverage with gaps
2With DCC 110. Higher bandwidth feasible with DL-MOD - Additional Information
-
Options
- TO-9 mm package
- TO-3 package with built-in TEC and thermistor
- Butterfly package with built-in optical isolator and fiber pigtail
- Note: Some packages may only be available for certain wavelengths, please inquire.
- Applications
-
Literature
- Scientific papers: Rubidium spectroscopy at 778-780 nm with a distributed feedback laser diode
