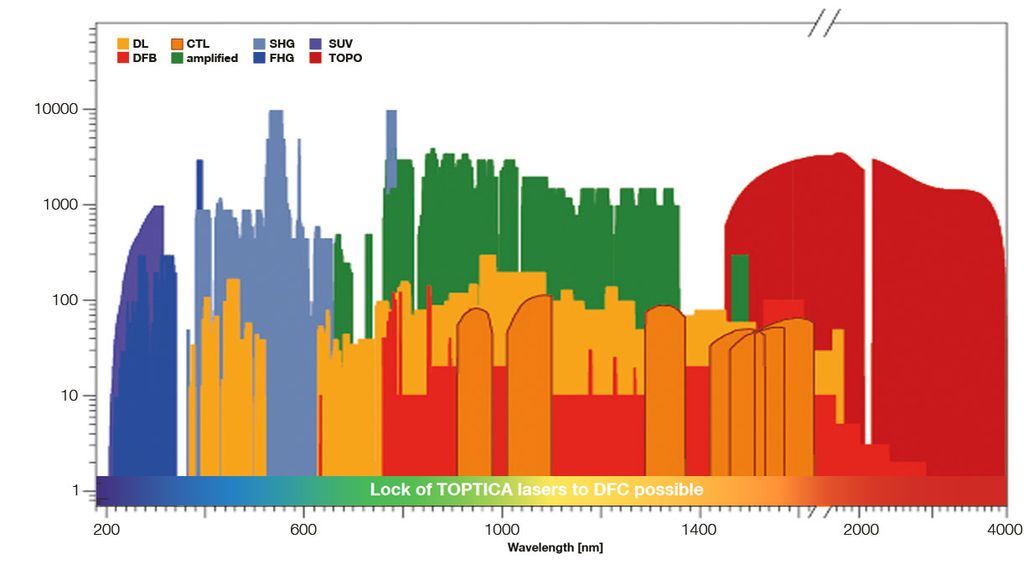

TOPTICA lasers for which lock to (M)DFC is possible. MDFC wavelength support ranging from 420 to 2000 nm.
MDFC
Modular Difference Frequency Comb for 19” rack integration
- Compact design
- Highly robust operation
- High-end stability transfer down to the 10-21 level
- Convenient remote control from a single GUI
- Spectral coverage 420 - 2000 nm
TOPTICA’s frequency comb product line uses our proprietary CERO-technology which is based on Difference Frequency Generation (DFG). It is inherently fCEO-stable and combines high robustness, high-end performance and a convenient user interface in a compact footprint.
Like all building blocks of TOPTICA’s Laser Rack Systems, the MDFC is designed to clear optical tables and to stow away laser systems into a 19" form factor. It is ideally suited for integration into TOPTICA Laser Rack Systems and helps researchers to focus on their experiment rather than on their laser system.
For maximum user convenience, the MDFC is controlled from a single user-interface. Any of TOPTICA’s tunable diode lasers with a wavelength between 420 nm and 2000 nm can be locked to the frequency comb. Frequency-doubled lasers with shorter wavelengths can be stabilized using their fundamental.
The MDFC perfectly integrates with TOPTICA’s modular laser systems and wavelength meters, enabling users to source a complete stabilized and rack-mounted laser system solution from a single supplier.
Compact | Robust | High-end | Convenient
Compact
- Fully self-referenced comb including electronics
- 19 inch compatible
Robust
- And it stays in lock … !
Convenient
- Control everything from a single window.
MDFC System Components
Request a quotation Download the product brochure Application Note: Phase and Frequency Locking of Diode Lasers
-
Specification
Module Description Frequency Comb MDFC CORE + Difference Frequency Comb, 4 offset-free outputs @ 1560 nm, > 10 mW, > 20 nm Wavelength extension* MDFC EXT 19“ sub-rack for wavelength extensions DFC IR Centered @ 1560 nm, bandwidth > 80 nm, typ. 100 nm DFC NIR Centered @ 780 nm, bandwidth > 35 nm, typ. 40 nm DFC DVIS** Wavelength range 420 (frep = 80 MHz), 450 (frep = 200 MHz) - 860 nm, bandwidth typ. > 2 nm @ 698 nm, typ. 1 nm @ 420 nm DFC SCNIR** Wavelength range 840 nm (frep = 80 MHz), 860 nm (frep = 200 MHz) - 980 nm, bandwidth > 50 nm, typ. 100 nm @ 935 nm DFC SCIR** Wavelength range 980 - 2000, bandwidth > 150 nm Reference DFC RF Low-noise oven-controlled quartz, output: 800 MHz, input: 10 MHz DFC GPS GPS frequency reference, output: 10 MHz, stability: 1.3 · 10-12 @ 1s, 1 · 10-13 @ 40000 s Beat units DFC BC Beam combiner for DFC and cw-laser, fiber coupled DFC BCF Fiber beam combiner for DFC and cw-laser, 980 nm, 1030 nm, 1300 nm, 1550 nm DFC MD Monochromatic detector unit, fiber coupled, use with DFC BC / DFC BCF Locking electronics MDFC LOCK 19“ sub-rack for FALC and PFD FALC Fast analog 2-channel PID PFD Phase frequency detector, enables remote locking with FALC Accessories DFC SCOPE Digital oscilloscope with spectrum analyzer (FFT), for convenient beat monitoring from software DFC COUNT 4 channel counter WS8-30 HighFinesse wavelength meter, for convenient determination of comb line number * other extensions on request, ** tunable (patent protected, US 8284808B2), please inquire for more details -
