Photoconductive Switches
Compact modules for pulsed terahertz generation
- Fiber-Coupled InGaAs Antennas
- SM/PM fiber pigtail and Silicon lens included
- High bandwidth > 6 THz, typ. 70 µW power
- Core components of TeraFlash pro and TeraFlash smart

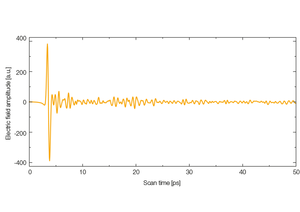

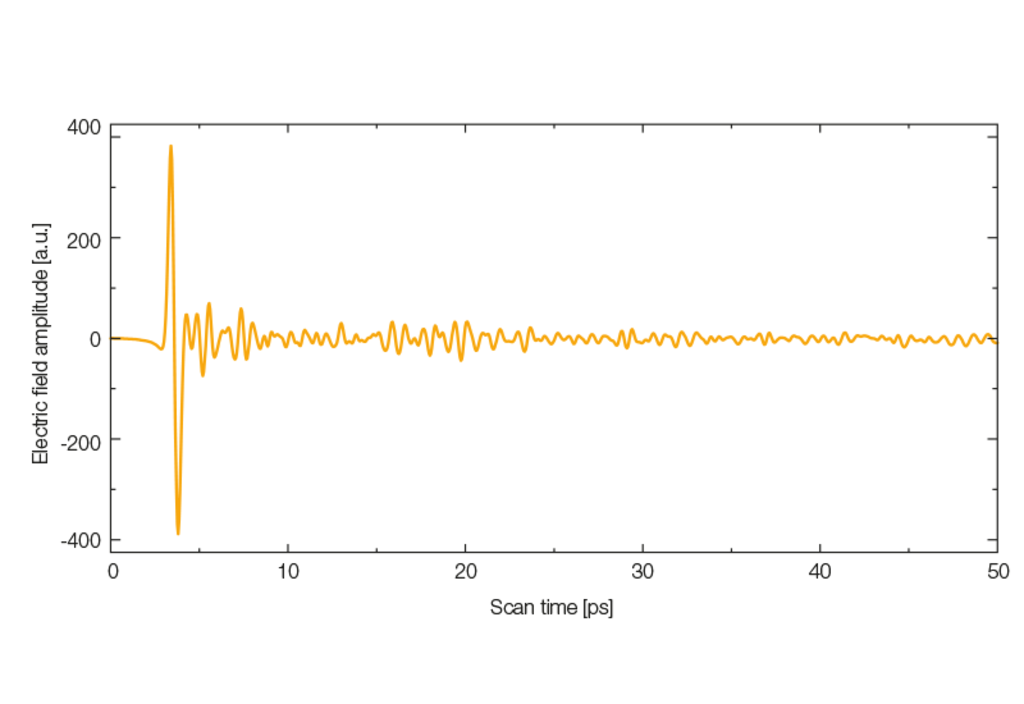

Pulsed terahertz generation with leading-edge technology: InGaAs antennas provide about 30 µW power and a bandwidth of 6 THz. The emitter and detector modules, developed by Fraunhofer Heinrich-Hertz Institute (Berlin/Germany), are packaged with a Silicon lens and SM/PM fiber. A new transceiver combines emitter and receiver in a single housing, enabling reflection measurements at vertical incidence. All devices can be used with TOPTICA’s TeraFlash pro and TeraFlash smart, but are available as individual modules too.
-
Specification
Specifications Photoconductive Switches Terahertz emitter InGaAs/InP photoconductive switch with strip-line antenna Terahertz receiver InGaAs/InP photoconductive switch with dipole antenna Emitter / receiver bandwidth 6 THz - Additional Information
- Applications
- Downloads
-
Literature
- Publication: M. Yahyapour et al., Fastest thickness measurements with a terahertz time-domain system based on electronically controlled optical sampling; Appl. Sciences (2019)
- Overview Article: Lang, M., et al., Laser-based terahertz generation & applications, Photonik International (2012)
- Scientific Paper: Vieweg et al., Terahertz-time domain spectrometer with 90 dB peak dynamic range, J Infrared Milli Terahz Waves, 2014
- Review paper: Naftaly, M., et al., Industrial applications of terahertz sensing: State of play, Sensors (2019)
- Scientific paper: Damyanov, D., et al., High resolution lensless terahertz imaging and ranging, IEEE Access (2019)
-
