TA-SHG pro

High-power, tunable, frequency-doubled diode laser

Resonant frequency doubling stage
Wavelengths: 330 .. 780 nm, linewidth < 500 kHz
AutoAlign and FiberMon options
PowerLock output power stabilization
With digital control DLC pro: Less drift & linewidth

The TA-SHG pro system, part of the UV / RGB solutions, comprises a tunable diode laser, a high power semiconductor (TA) and an integrated frequency doubling stage (SHG pro). Alternatively, it is available with a fiber (FA) or Raman fiber (RFA) amplifier. The SHG stage is a folded ring cavity in bow-tie configuration with excellent thermal and mechanical stability.

The system now includes fully-automated push-button coupling optimization into the TA chip, the SHG cavity and the output fiber, as well as output power stabilization. It provides tunable laser radiation for spectroscopy, laser cooling, optical data storage, holography and interferometry.

The rack-mounted version of TA-SHG pro for integration into T-RACK is available as MSHG pro.

See more in our product video

Request a quotation Download the product brochure

Specification

Wavelength range *	330 .. 680 nm (with semiconductor amplifier) 510 .. 780 nm (with fiber amplifier)
Seed laser	DL pro, DL DFB
Amplifier	Semiconductor amplifier (TA pro), fiber amplifier (FA) or Raman fiber amplifier (RFA)
Doubling stage	SHG pro
Coarse tuning	2 .. 20 nm

Continuous scan range	> 20 GHz
Operation	Single frequency
Linewidth	< 500 kHz
Output power	Up to 2000 mW or 30 W with fiber amplifier, depending on wavelength
Spatial mode	Near diffraction limited
Optical isolation	Two isolators (DL stage, TA stage) included
Beam shaping	Included
Water cooling	Not required, supported
SHG cavity leak rate	< 1E-3 mbar l/s
Control electronics	DLC pro, 19" single-stage rack
Warm-up time	< 5 min typ.
Dimensions laser head (H x W x D)	90 x 410 x 485 mm3
Weight laser head	Up to 20 kg
Dimensions control unit	Single stage 19" rack DLC pro
Weight control unit	Up to 10 kg
Operating voltage	100 .. 120 V / 220 .. 240 V AC, 50 .. 60 Hz (auto detect)
Power consumption	< 150 W typ., 300 W max.
PC Interface	Ethernet, USB, analog control
Environment temperature	15 - 30 °C (operating), 0 - 40 °C (storage and transport)
Environment humidity	Non-condensing

*With different NLO crystals and mirrors

Examplary Systems

Wavelength (nm)	Output Power (mW)
396 - 400	1200
459 - 463	1300
473 - 481	1000
479 - 488	1000
492 - 495	1000
555 - 560	2000
588 - 590	1200
625 - 627	800
670 - 674	1000

Additional Information

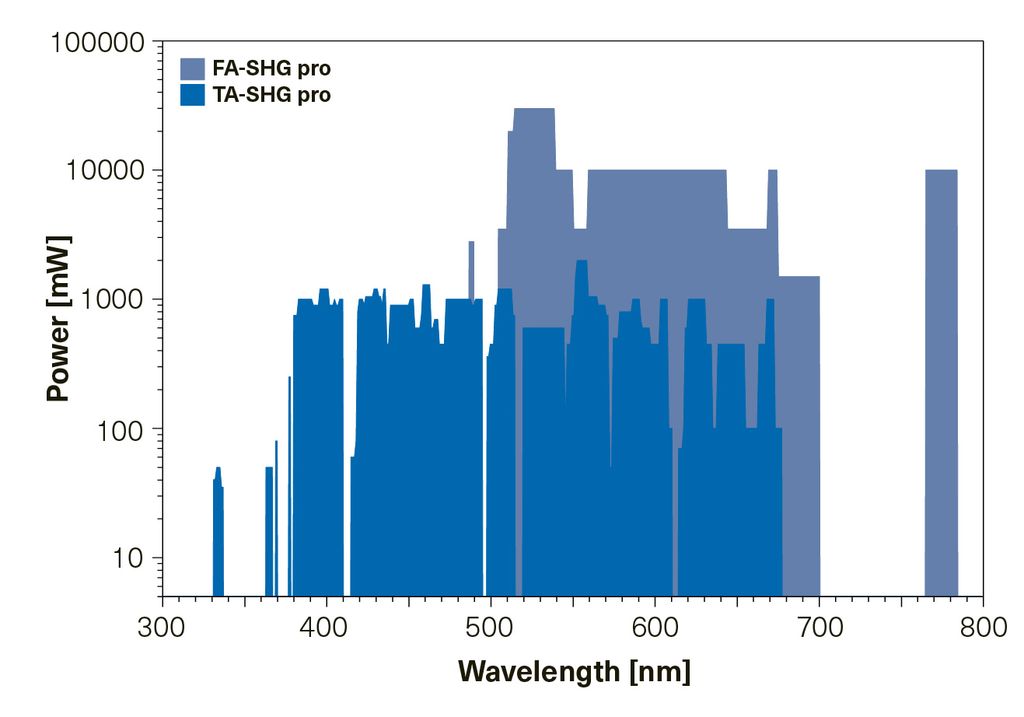

[Translate to Chinese (Translation Fallback):] TA-SHG pro: Available wavelengths and output power

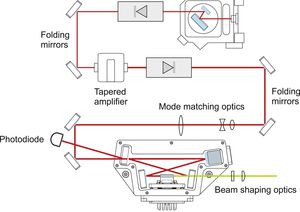

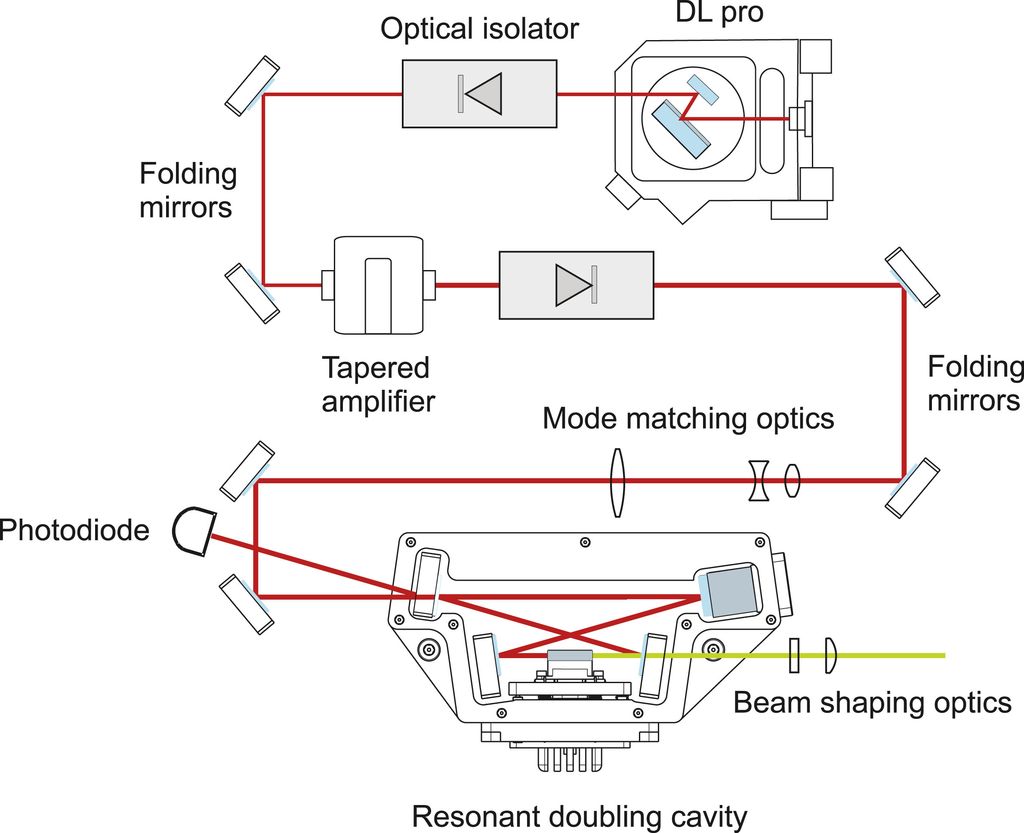

[Translate to Chinese (Translation Fallback):] TA-SHG pro system with tapered amplifier TA pro.

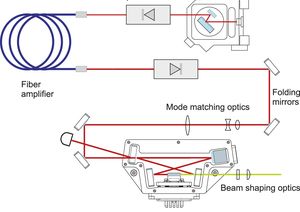

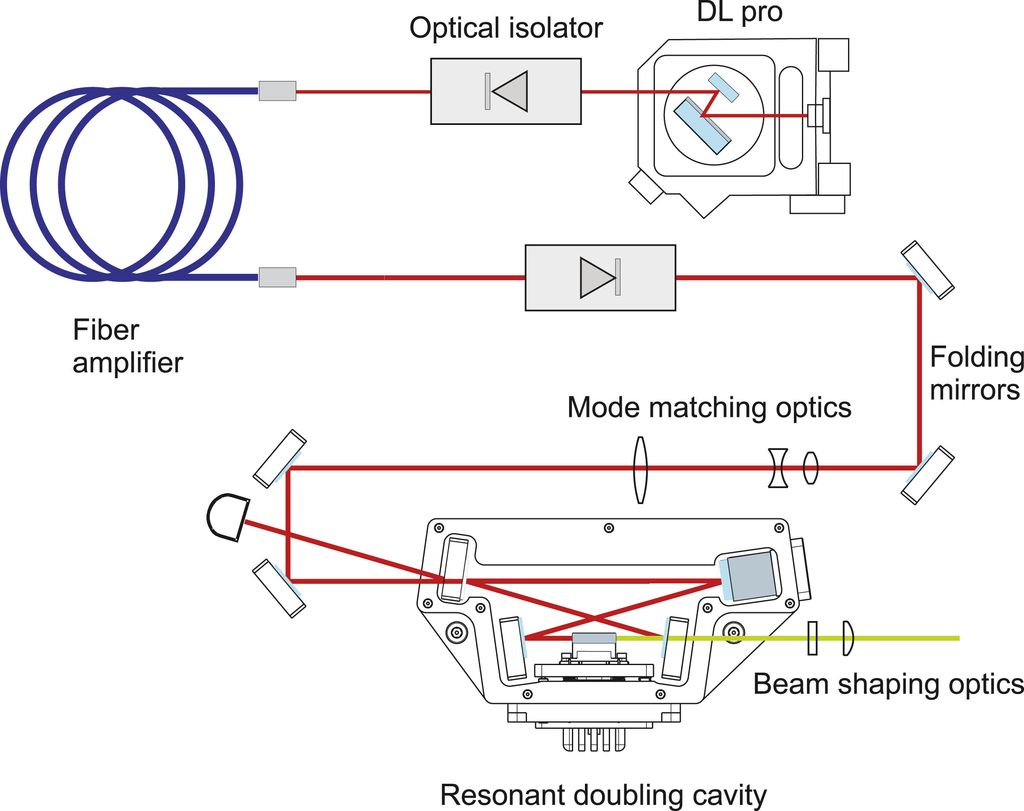

[Translate to Chinese (Translation Fallback):] FA-SHG pro system with integrated fiber amplifier.

[Translate to Chinese (Translation Fallback):] TA-SHG pro: BEC of Chromium

Options

	AutoAlign Automated alignment of beams coupled to SHG cavity and FiberMon. No compromising of passive stability - AutoAlign is only activated on user request.
	FiberDock Fiber coupling of various output beams: Fundamental probe beam, SHG probe beam, and SHG output beam.
	FiberMon Allows measurement of the SHG output power propagating in a single-mode, polarization-maintaining (SM-PM) fiber for PowerLock and AutoAlign. Two wavelength regions are available.
	EOM An EOM before the doubling cavity allows to independently create the PDH signal for laser locking. Advantageous for maximum mode-hop-free tuning range.
	Narrow Linewidth The DL pro fundamental master laser is replaced by a narrow-linewidth version. Other master lasers (DFB/DBR) available upon request.
	High Power At certain wavelenghts, high power tapered amplifiers are available. The option includes high-current driving electronics and a high-power capable SHG stage.
	Advanced Locking Various lock options from side-of fringe frequency stabilization to PDH linewidth narrowing available. Modules like DigiLock 110 or PDH/DLC pro can be installed in the DLC ext extension rack, with shortest-possible cable length right next to the laser head. For the most demanding applications you can use the FALC pro (see Laser Locking Electronics).
